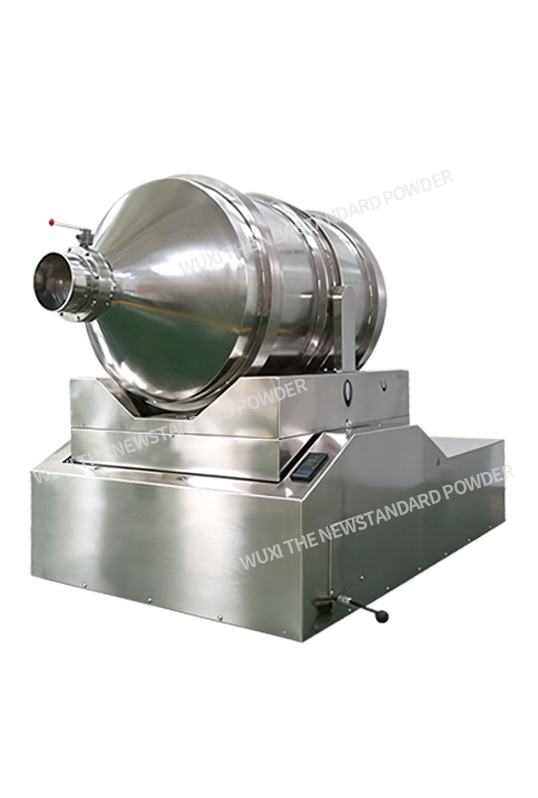

Two-dimensional mixer

Structural Features & Applications

This mixer is widely adopted in pharmaceutical, chemical, food, dye, feed, fertilizer, pesticide and other industries, especially suitable for mixing various solid materials in large-volume models ranging from 1000L to 10000L.

The mixing cylinder rotates while oscillating simultaneously to achieve sufficient blending of internal materials. The discharge outlet is offset from the central axis of the cylindrical tank, bringing advantages including fast blending speed, large processing capacity and convenient discharging operation.

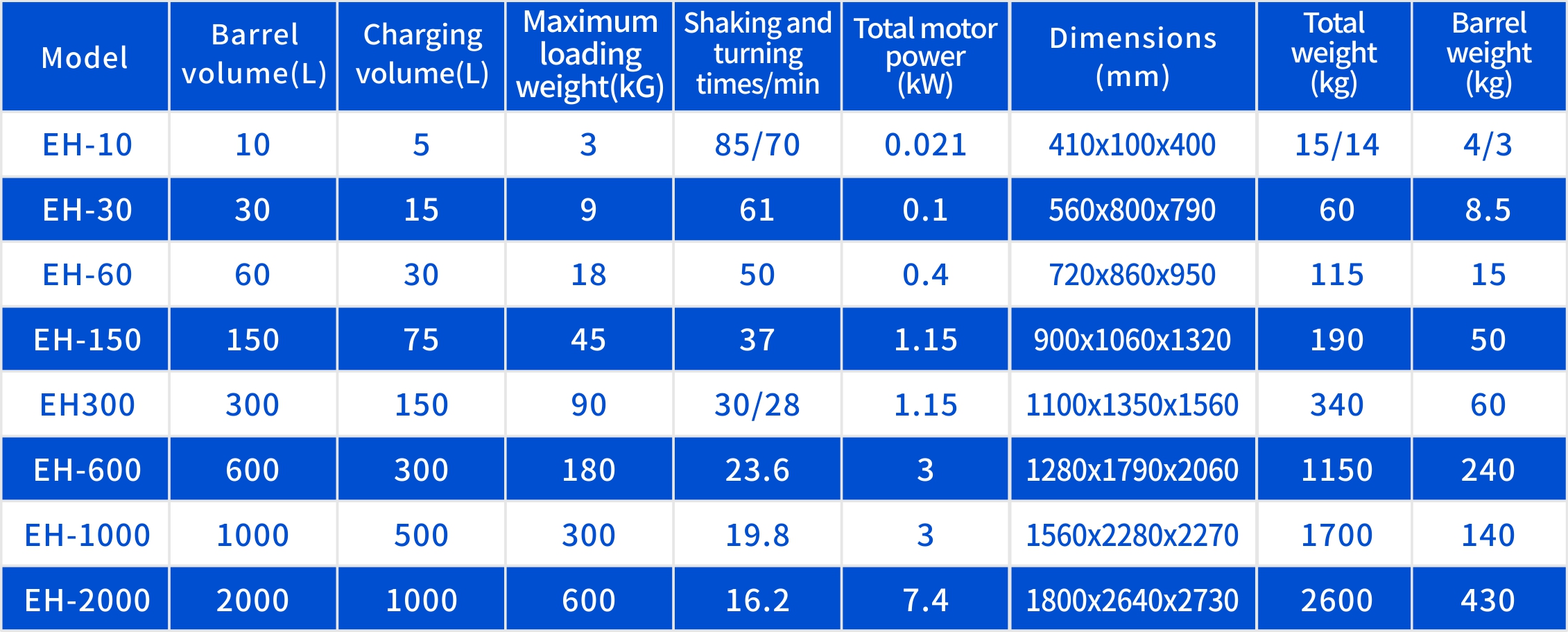

Main Technical Parameters
