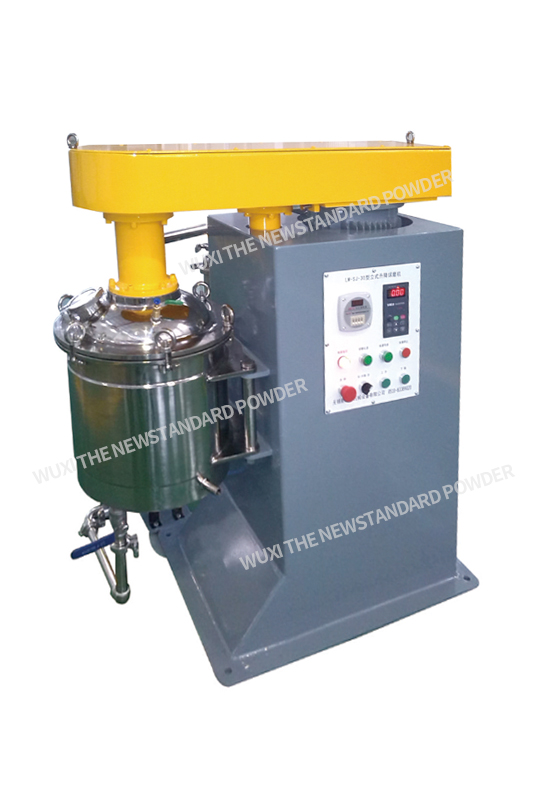

Vertical Lifting Ball Mill

Product Introduction

The vertical lifting ball mill incorporates a lifting mechanism based on the design of a vertical ball mill. Currently, existing vertical ball mills primarily consist of a stirring shaft, stirring rods, a machine frame, a main equipment motor, a reducer, a ball barrel, and other components. Since the machine frame is an integrally welded workpiece (or casting), it causes numerous inconveniences in user operation. This machine aims to overcome the shortcomings of vertical ball mills, thereby providing a vertical lifting ball mill that features vertical lifting, humanized design, convenient operation, easy cleaning, simple maintenance, and straightforward media replacement.

Working Principle

During normal operation, this machine functions similarly to a vertical ball mill, with the upper and lower frames forming an integrated structure connected by frame fastening bolts. When performing tasks such as replacing grinding media, cleaning, or maintenance, the frame fastening bolts are loosened. The main motor, reducer, agitator, upper frame, etc., are then lifted by the lifting motor driving the reducer, which rotates the lifting screw. Through lifting mechanisms such as lifting columns, the main motor, reducer, agitator, upper frame, etc., are elevated. At this point, the ball mill barrel fastening bolts fixed to the ball mill barrel are loosened. By turning the handwheel installed on the worm gear reducer, which facilitates the tilting motion of the ball mill barrel, the ball mill barrel is rotated over to remove the grinding media, clean, and maintain the equipment.

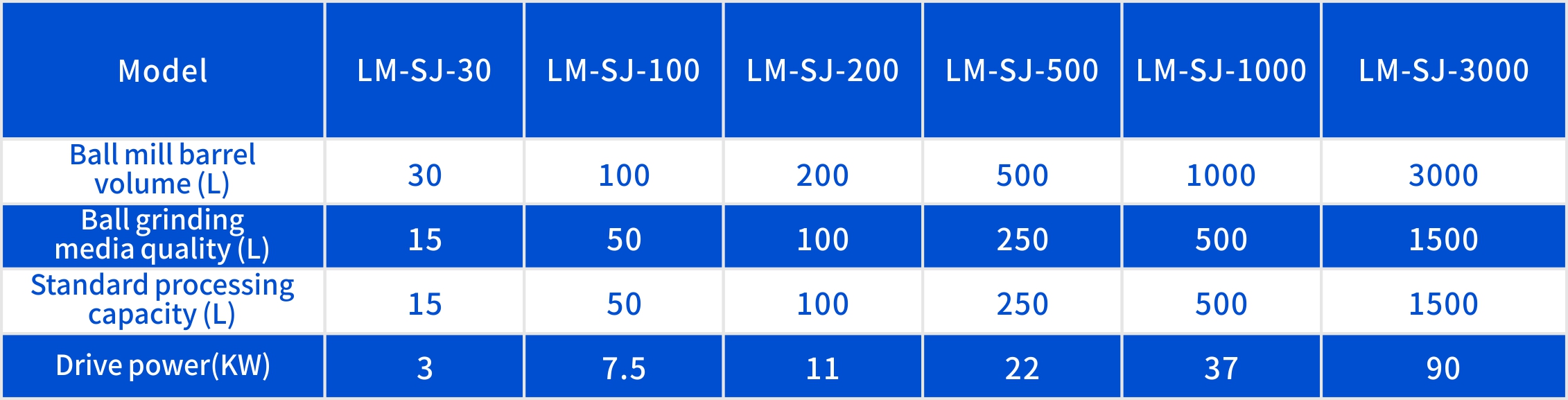

Main Technical Parameters
